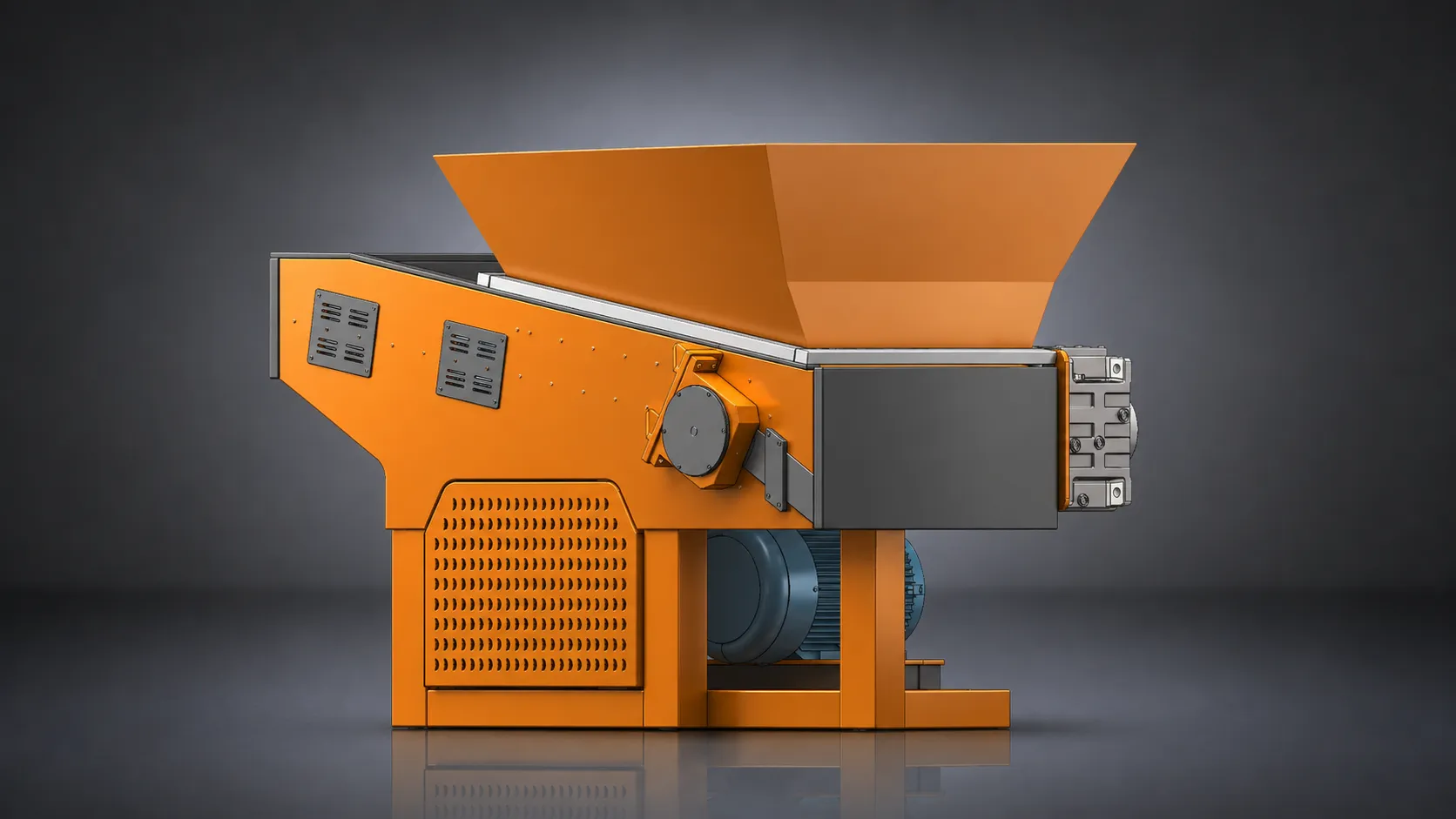

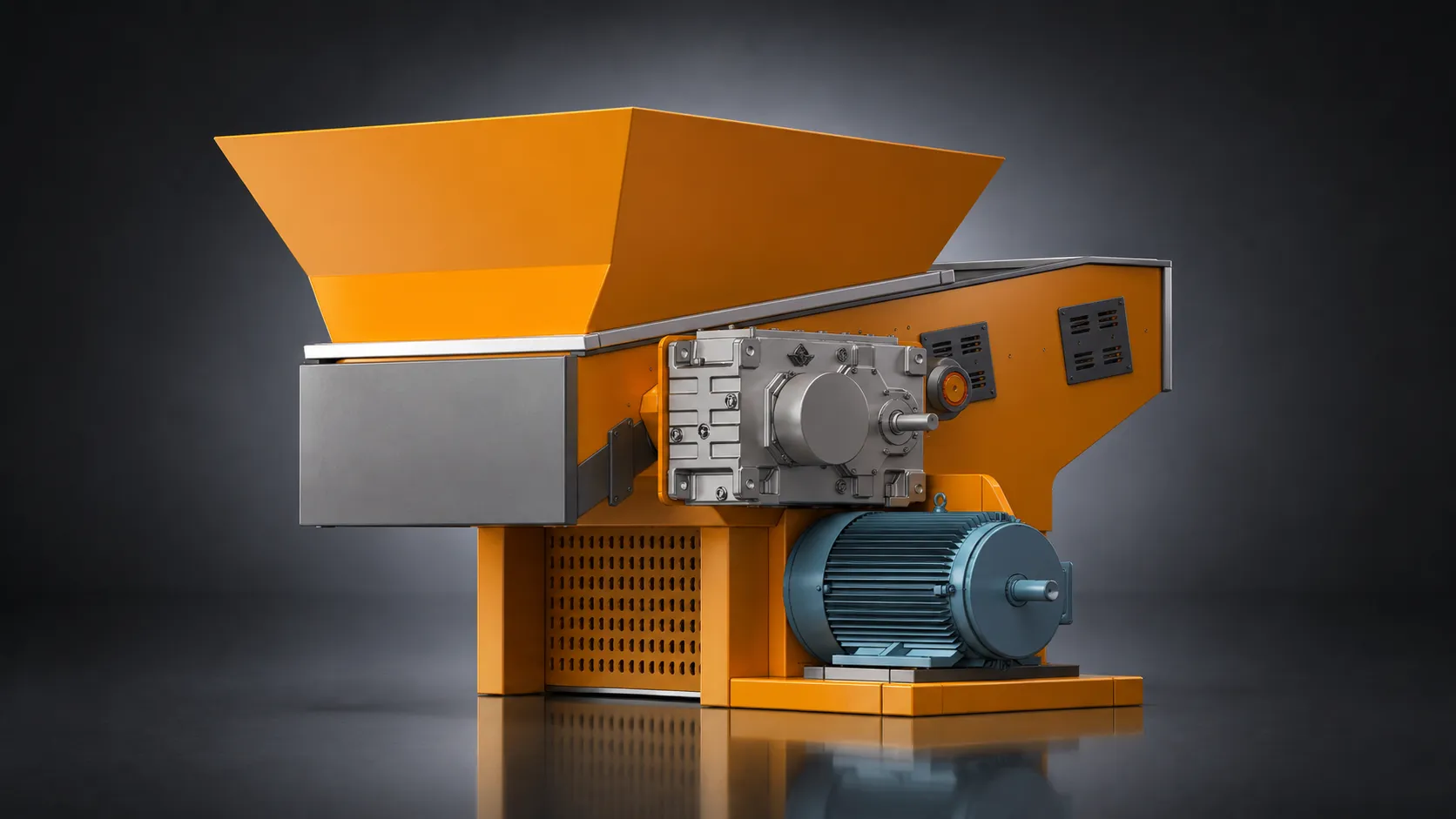

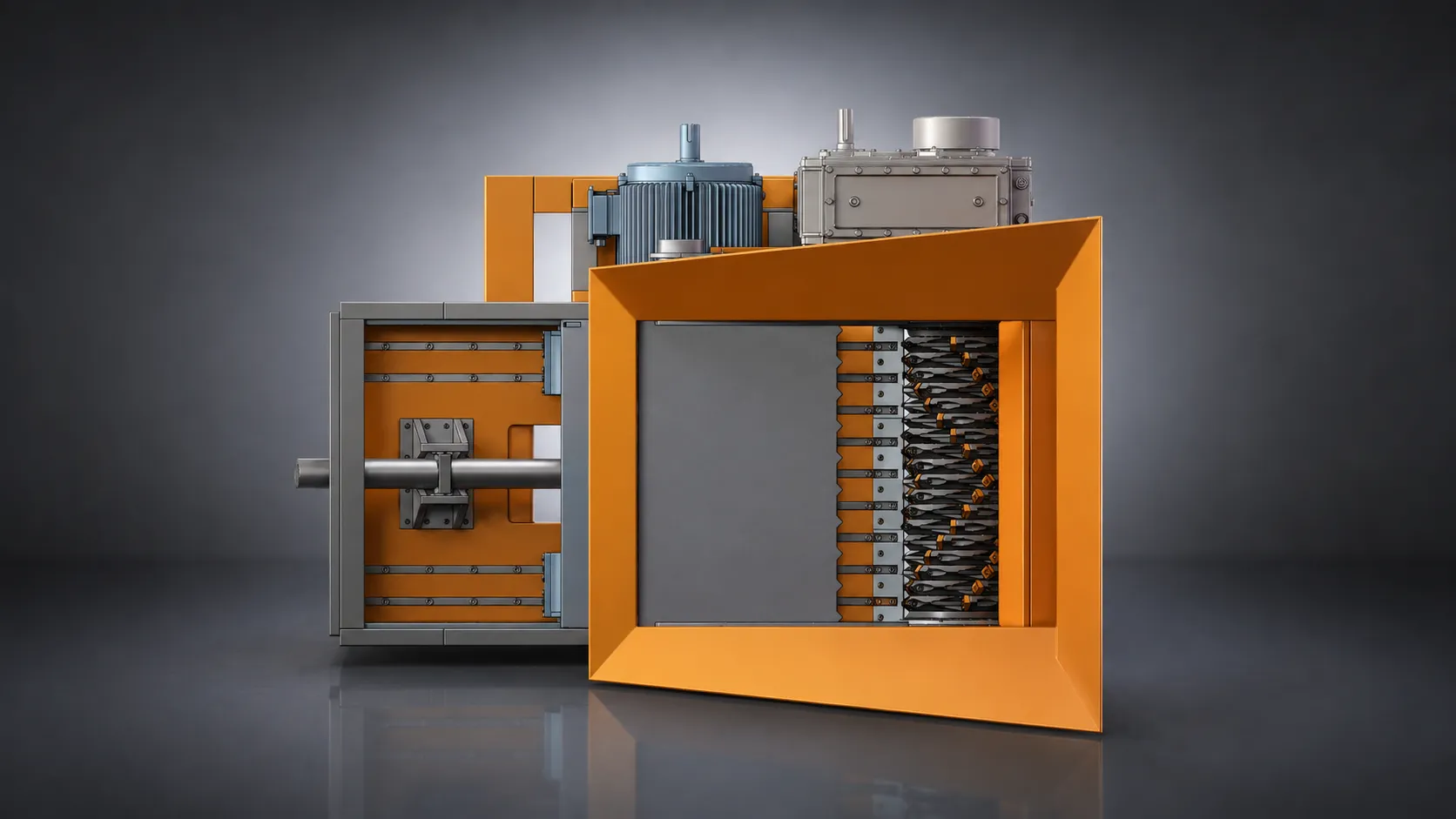

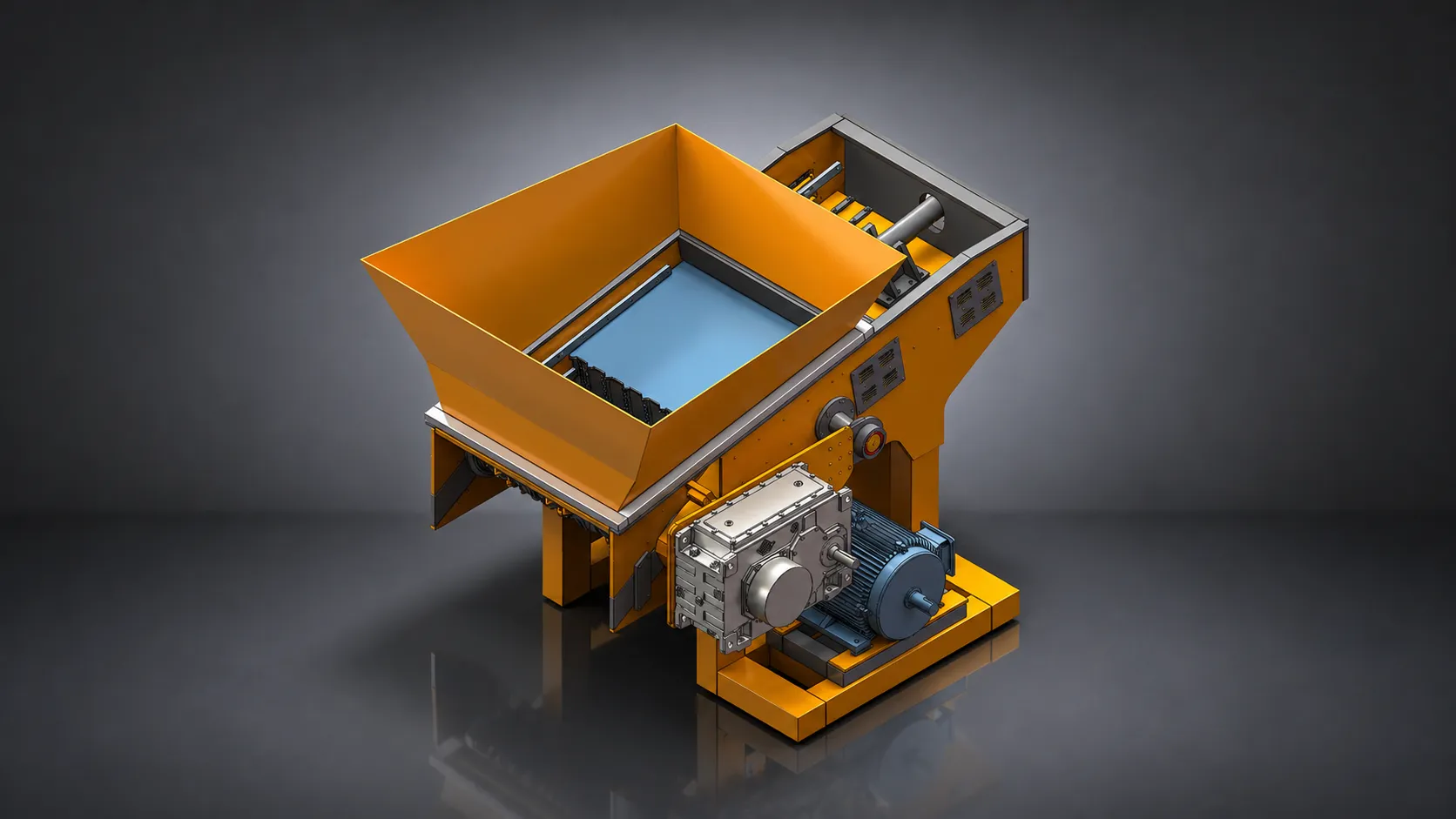

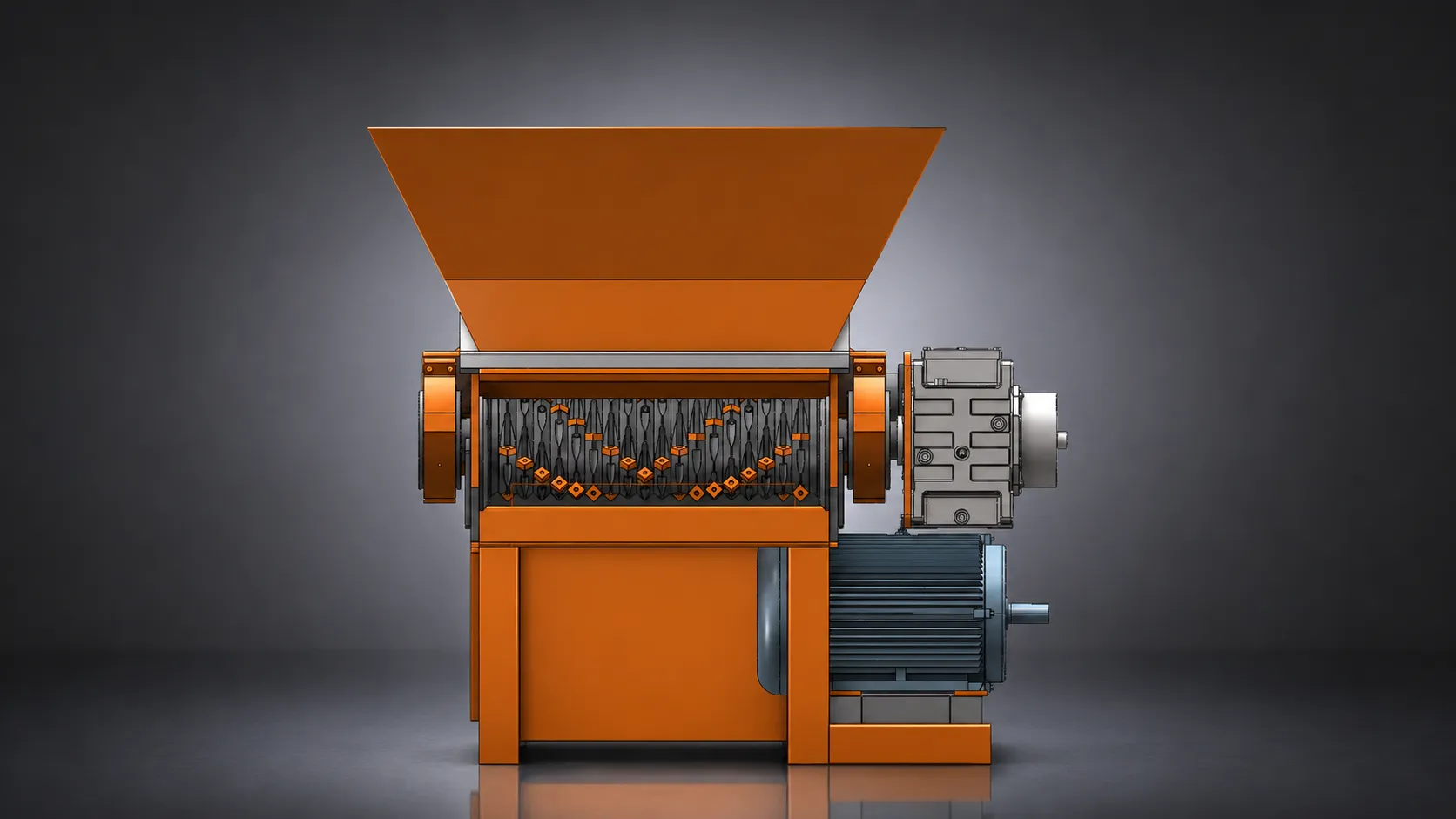

Single Shaft Shredder
single shaft shredder
We can provide non-standard customization, precision machining, and one-stop supporting services.
MACHINERY FEATURES

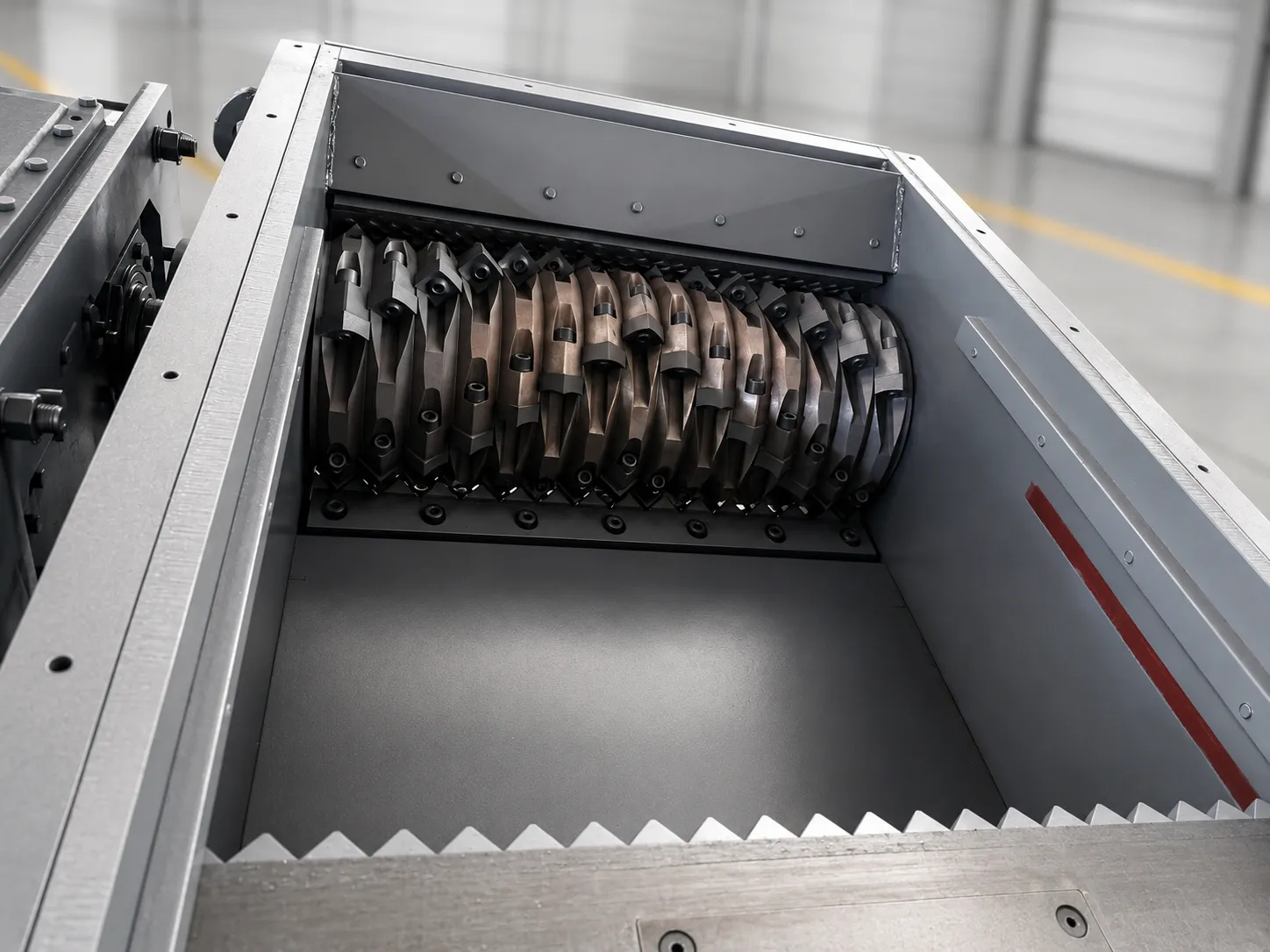

The knives are made by high-strength wear-resistant metal material.
Knives design with different thicknesses and different quantity of claws can be used for different materials.
SUITABLE FOR
PRODUCT MODEL AND MAIN PARAMETERS
Model（Kw） | KE600 | KE800 | KE800 | KE1000 | KE1000 | KE1200 | KE1200 |

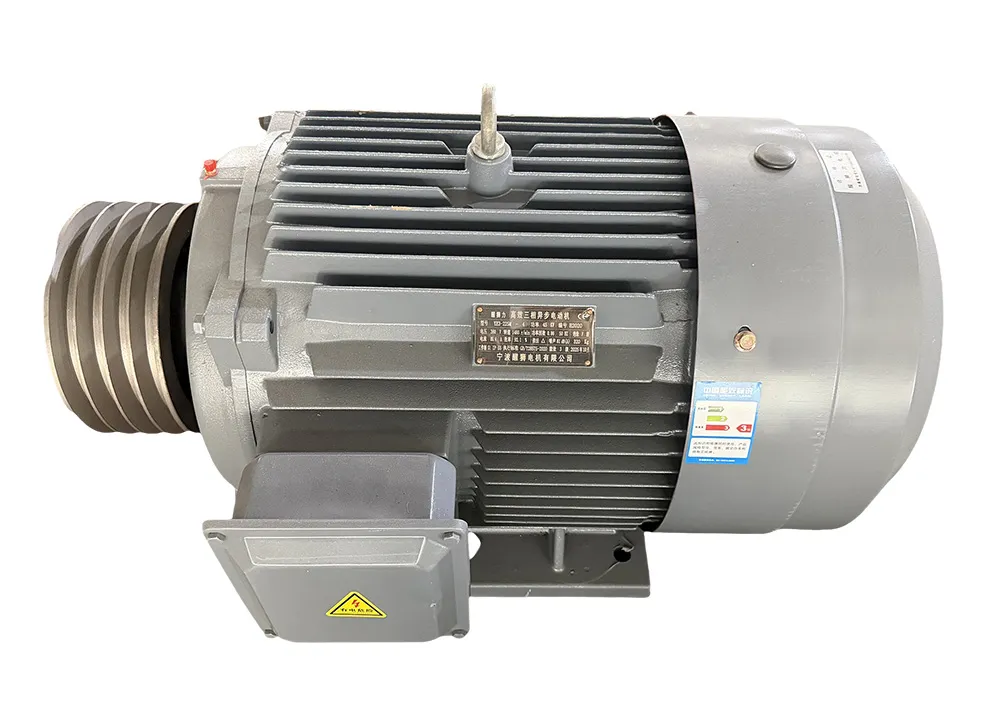

Motor Power（Kw） | 30KW | 37KW | 45KW | 55KW | 75KW | 75KW | 90KW |
Diameter of Rotor（mm） | 300 | 360 | 360 | 400 | 400 | 400 | 400 |
QTY of Rotary Blades（pcs） | 44(40mm) | 55(40mm)/44(50mm） | 55(40mm)/44(50mm） | 76(40mm)/56(50mm） | 76(40mm)/56(50mm） | 92(40mm)/68(mm) | 92(40mm)/68(mm) |
QTY of Fixedy Blades（pcs） | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Hydraulic Power（kw） | 3Kw | 4Kw | 4Kw | 4Kw | 4Kw | 4Kw | 4Kw |
Chamber Size（mm） | 600*600 | 800*800 | 800*800 | 1000*1000 | 1000*1000 | 1200*1100 | 1200*1100 |
Feeding Size e* f （mm） | 600*700*450 | 1400*1000*500 | 1400*1000*500 | 1600*1200*550 | 1600*1200*550 | 1800*1400*600 | 1800*1400*600 |
Discharging Size h*w（mm） | 600*300 | 800*300 | 800*300 | 1000*400 | 1000*400 | 1200*400 | 1200*400 |
Dimension L*W*H（mm） | 2100*1350*1750 | 2700*1600*1850 | 2700*1600*1850 | 3000*2000*2050 | 3000*2000*2050 | 3500*2250*2150 | 3500*2250*2150 |
Capacity（kg/hr） | 300-600 | 400-700 | 400-700 | 600-1000 | 600-1000 | 800-1200 | 800-1200 |
Weight（kg） | 2000 | 3300 | 3300 | 4700 | 4700 | 6300 | 6300 |

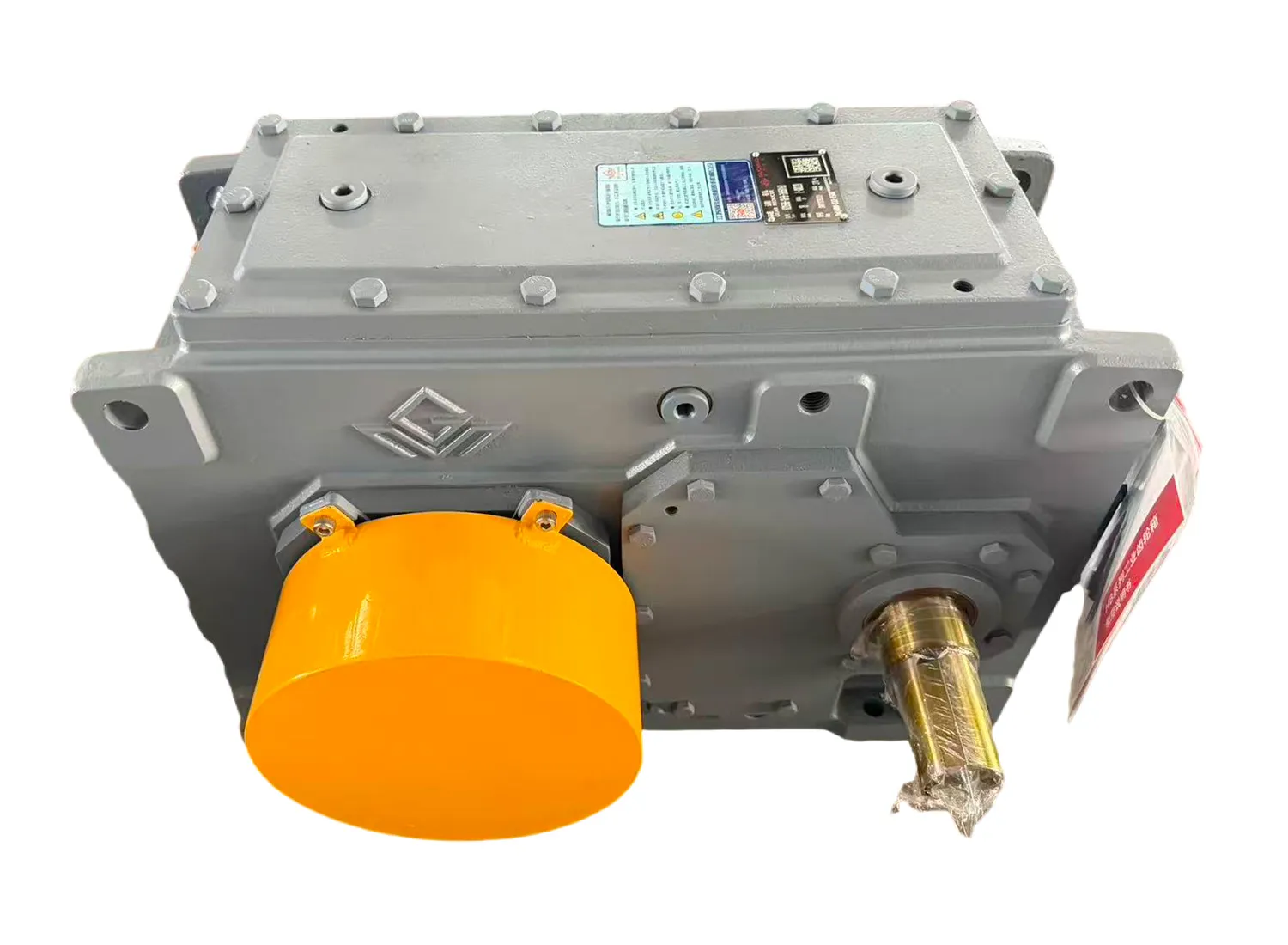

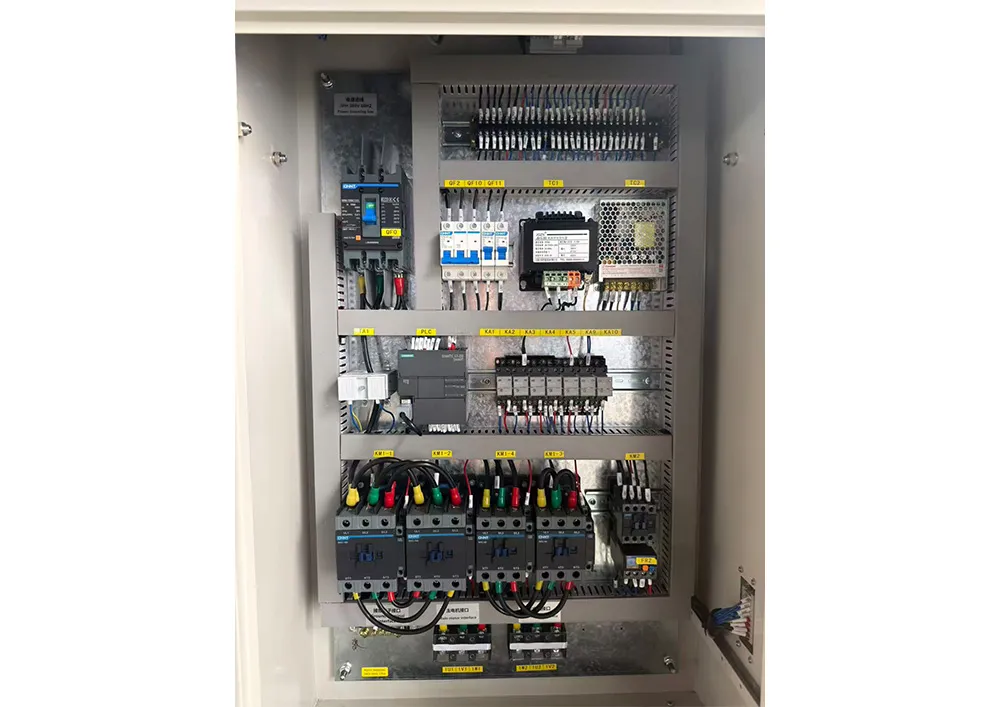

PRODUCT DETAILS
